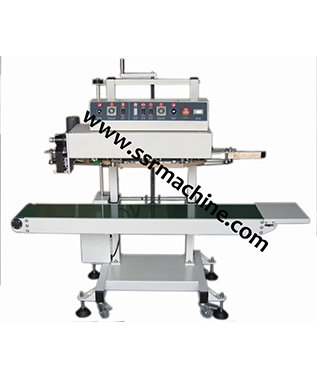

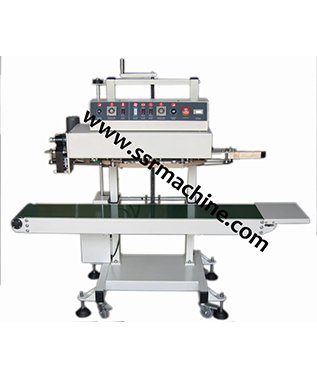

Vertical Continuous Feed Sealer With Ribbon Printing

The Vertical Continuous Feed Sealer With Ribbon Printing installs a ribboncoding. The overall performance is morepractical. Impress a good ribbon coding effect. Effectively improve the quality of the product packaging. It is widely used in product packaging.

Quantity:
  • SV-200
  • SSR

Product Features

1. Suitable for large bag,liquid,power,weight packagers.
2.Ribbon printing:1 or 2 lines available; carve a seal printer to make the printing clealy
3.Continuous heating system:Infinite sealing length
4.Self-adjusting pressure system:suitable for sealing any type and thickness of the bag
5.High quality temperature controller:Keep sealing graceful
6.Adjustable working speed:useful for assembling line with high efficiency
7.Working cycle counter included
8.Install the press bearing, even if the product is attached to the dust, but also to the security of the paste.
Adopt thick and solid material,having good durability
9.Using the best bearing and chain,prolong using life and prevent lengthening
10.Install the emergency switch to prevent dangerous because of the user's wrong operation.
11. The pressure of the hot plate can be adjusted according to the thickness of the paper bag
12. Option:Hot printer,Air suction system,double heater,Stainless steel





Specification



Model

SV-200P

Voltage

AC220V,1Ph

Power

1100W

Sealing Width

10mm

Sealing Speed

21 m/min

Conveyor Table size

L1450*W220mm

 High temperature fabric specifications


L1210*W20mm


Machine size

L1450*W700*H1500mm

Net Weight

116kg

Printing method


ribbon code
