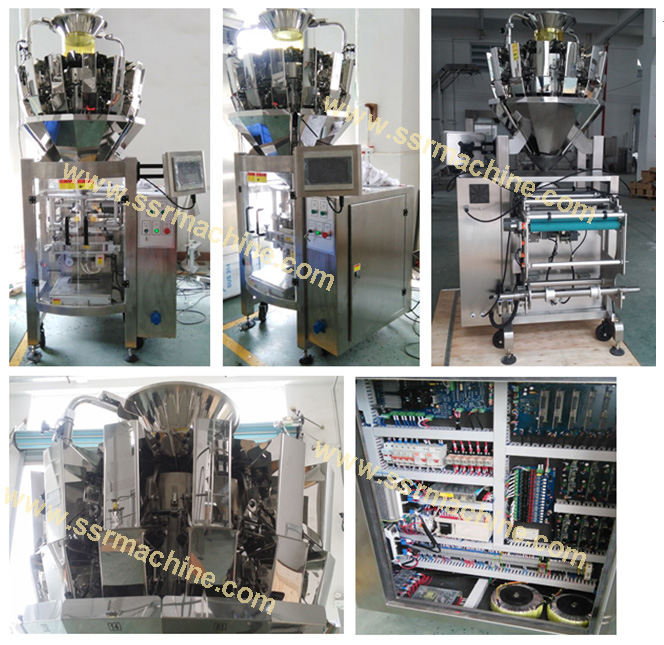

This packing line is a good solution for packing loose, fragile solid material with high speed.
1. PLC and touch screen operation interface with languages choose.
2. Simple and fast bag size changeover with one-piece forming sets.
3. Exact alerting to prevent product to be jammed between the jaws.
4. Photocell Sensor tracking the printed eye-mark.
5. Data printer (hot stamp) is automatically set.
6. Stainless steel as standard version for excellent durability and sanitation.
| Quantity: | |
|---|---|
| Display | 7 inch touch screen |
| Head Scale | 14Heads |
| Scale bucket Volume | 0.8L |
| Hopper material | 304 stainless steel |
| Single Weingh Range | 25~500g |
| Max.weight | 1000g |
| Weigh accuracy | ±0.5~2g |
| Packing Speed | 15-100bags/min (depends on the materials) |
| Max Film Width | 420mm |
| Bag Size | 50~190mm Wide, 50~230mm Long |
| Film Roll | Laminated film, like OPP/CPP, OPP/PE, MST/PE, PET/PE, etc. |
| Core Inner: Φ 75mm ; Outer diameter less than 400mm; | |
| Film Thickness | 0.04-0.08mm |
| Film Pulley driven | By Servo |
| End Jaws driven | By Servo |
| Air Consumption | 0.6 Mpa, 0.3m3/min |
| Voltage | AC220V |
| Electric Current | 50Hz / 60Hz |
| Total Power | 4 KW |
| Weight | N.W.: 650kgs; G.W.: 800KGS |
